2026 GMC Sierra 3500 HD: The Mobridge, SD Buyers Guide
Dually or single rear wheel, what every cab and bed is rated to pull and carry, and what the crew cab trucks on our lot actually do. Every figure here is a GM published rating for a properly equipped truck, tied to the exact cab, bed, drive, engine, and package it belongs to.
What Is New for the 2026 Sierra 3500 HD?
Short answer: two paint colors, and nothing under the truck. GM publishes no change list for the 2026 Sierra 3500 HD, and the only items flagged new are colors:
- Coastal Dune (G42), a warm tan, offered on Pro, SLE, and AT4. It is not offered on SLT, Denali, or Denali Ultimate.
- Glacier White Tricoat (G4J), a pearl white, offered on SLT, Denali, and Denali Ultimate. It is not offered on AT4.
Everything that decides whether this truck fits your trailer carries over: both V8s, both 10-speed automatics, the axles, the frame, the 14,000-pound dually GVWR, and every rating below. For 2027 there is more to talk about: new engine codes, the Allison name on the transmission, an 18-inch wheel on every dually, and a higher single-rear-wheel GVWR ceiling. See what is new for 2027 before you decide whether to buy off the lot or order.

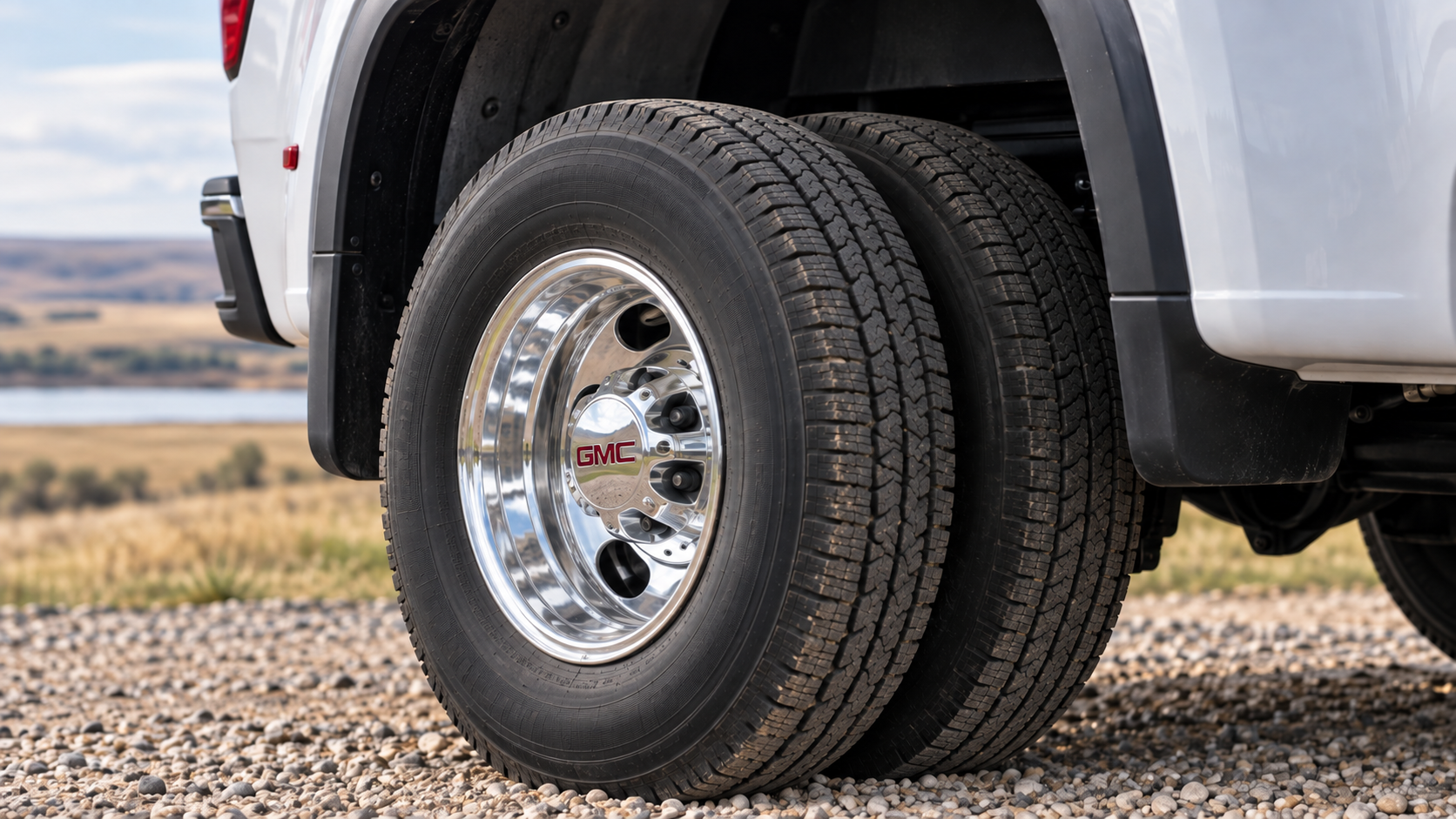

The 18-inch polished forged dually wheel, standard on a Denali or Denali Ultimate dually and available on an SLE or SLT. Otherwise a Pro, SLE, or SLT dually leaves on 17-inch painted steel.
Two 6.6L V8s: Gas or Duramax?
Every 2026 Sierra 3500 HD runs one of two 6.6-liter V8s behind a 10-speed automatic. The gas engine is standard on Pro, SLE, SLT, AT4, and Denali; the Duramax is optional on those five and the only engine on the Denali Ultimate. Both are available on every cab and bed.
Standard, Pro through Denali
6.6L Gas V8 (L8T)
401 horsepower at 5,200 rpm and 464 lb-ft of torque at 4,000 rpm, direct injection, variable valve timing, a 10-speed automatic, and a 3.73 rear axle. Properly equipped it is rated 16,000 pounds conventional on any single-rear-wheel crew cab or Double Cab, and 17,500 to 18,700 pounds as a dually.
Best for: a truck that hauls heavy but not far, a bale bed or service body, and the simplest winter upkeep.
Available Pro through Denali, standard Denali Ultimate
6.6L Duramax Turbo-Diesel V8 (L5P)
470 horsepower at 2,800 rpm and 975 lb-ft of torque at 1,600 rpm, a 10-speed automatic, a 3.42 rear axle, and B20 biodiesel capability. It brings an engine block heater, an exhaust brake, a 220-amp alternator, and a 730-cold-cranking-amp battery with it.
Best for: gooseneck work at capacity, long grades on Highway 12 and 1806, and anyone who needs a dually gooseneck rating in the 30,000-pound class.
What the engine choice changes: properly equipped, the diesel is rated 30,700 to 31,580 pounds gooseneck on a crew cab or Double Cab dually and 21,000 to 22,070 on a single-rear-wheel crew cab, while the gas V8 runs 17,500 to 18,760 across the dually range. Gas does not change what the axle can hold, but it caps what the combination can pull.
Two details buyers miss. You do not pick an axle ratio; 3.73 comes with gas and 3.42 with the diesel. And Pro and SLE trucks with the Duramax and 4WD can take a 10-speed with an integrated power take-off for bale beds, hoists, and dump bodies. Fuel economy is not published in this weight class.
The engines are shared with the Sierra 2500 HD, so the Duramax-versus-gas guide applies here as well.
Six Trims: Pro, SLE, SLT, AT4, Denali, Denali Ultimate
There is no AT4X at the one-ton. Pro and SLE are the only trims offered in Regular and Double Cab, the Pro is the only trim with 2WD, and from the SLT up every truck is a 4WD Crew Cab. The rule that matters most: dual rear wheels require a long bed and the 14,000-pound GVWR, so there is no standard-bed dually, and the AT4 is single rear wheel only.
| Trim | Cabs and drive | Rear wheels | Interior | Wheels and tires | Tailgate | Screens and audio |
|---|---|---|---|---|---|---|
| Pro | Regular, Double, Crew; 2WD or 4WD | Single or dual | Jet Black vinyl or cloth; vinyl floor; 40/20/40 bench | Single: 18-inch steel or machined aluminum, LT275/70R18E. Dually: 17-inch steel, painted caps, LT235/80R17E | Standard; EZ Lift or MultiPro with the Convenience Package | 7-inch screen, 3.5-inch driver display, 6 speakers |
| SLE | Regular, Double, Crew; 4WD only | Single or dual | Jet Black or Dark Walnut and Slate cloth; carpet | Single: 18-inch machined, 20-inch available. Dually: 17-inch steel with chrome skins, or 18-inch polished forged on LT235/80R18 | EZ Lift standard; MultiPro available | 13.4-inch Google built-in, 12.3-inch driver display, 6 speakers |
| SLT | Crew Cab only; 4WD | Single, or dual on the long bed | Jet Black or Dark Walnut and Slate perforated leather-appointed | Single: 18-inch machined, dark pockets, 20-inch available. Dually: 17-inch steel with chrome skins, or 18-inch polished forged (required with the Premium Package) | EZ Lift standard; MultiPro available | 13.4-inch, 12.3-inch, Bose 7-speaker with the Convenience Package |
| AT4 | Crew Cab only; 4WD | Single only | Jet Black perforated leather with Kalahari accents, buckets, seats 5 | 20-inch high-gloss black on LT275/65R20 all-terrains; BFGoodrich KO3 available | MultiPro standard | 13.4-inch, 12.3-inch, Bose 7-speaker; 15-inch head-up display with the Technology Package |
| Denali | Crew Cab only; 4WD | Single or dual | Forge perforated leather in Jet Black or Atmosphere and Brownstone; 12-way seats | Single: 20-inch ultra-bright machined with chrome inserts. Dually: 18-inch polished forged with Denali caps | MultiPro standard | 13.4-inch, 12.3-inch, Bose 7-speaker; head-up display with the Reserve Package |
| Denali Ultimate | Crew Cab only; 4WD; Duramax only | Single or dual | Alpine Umber full-grain leather, 16-way massaging front seats, seats 5 | Single: 20-inch ultra-bright with gloss black inserts. Dually: 18-inch polished forged | MultiPro standard | 13.4-inch, 12.3-inch, Bose 12-speaker, 15-inch head-up display standard |

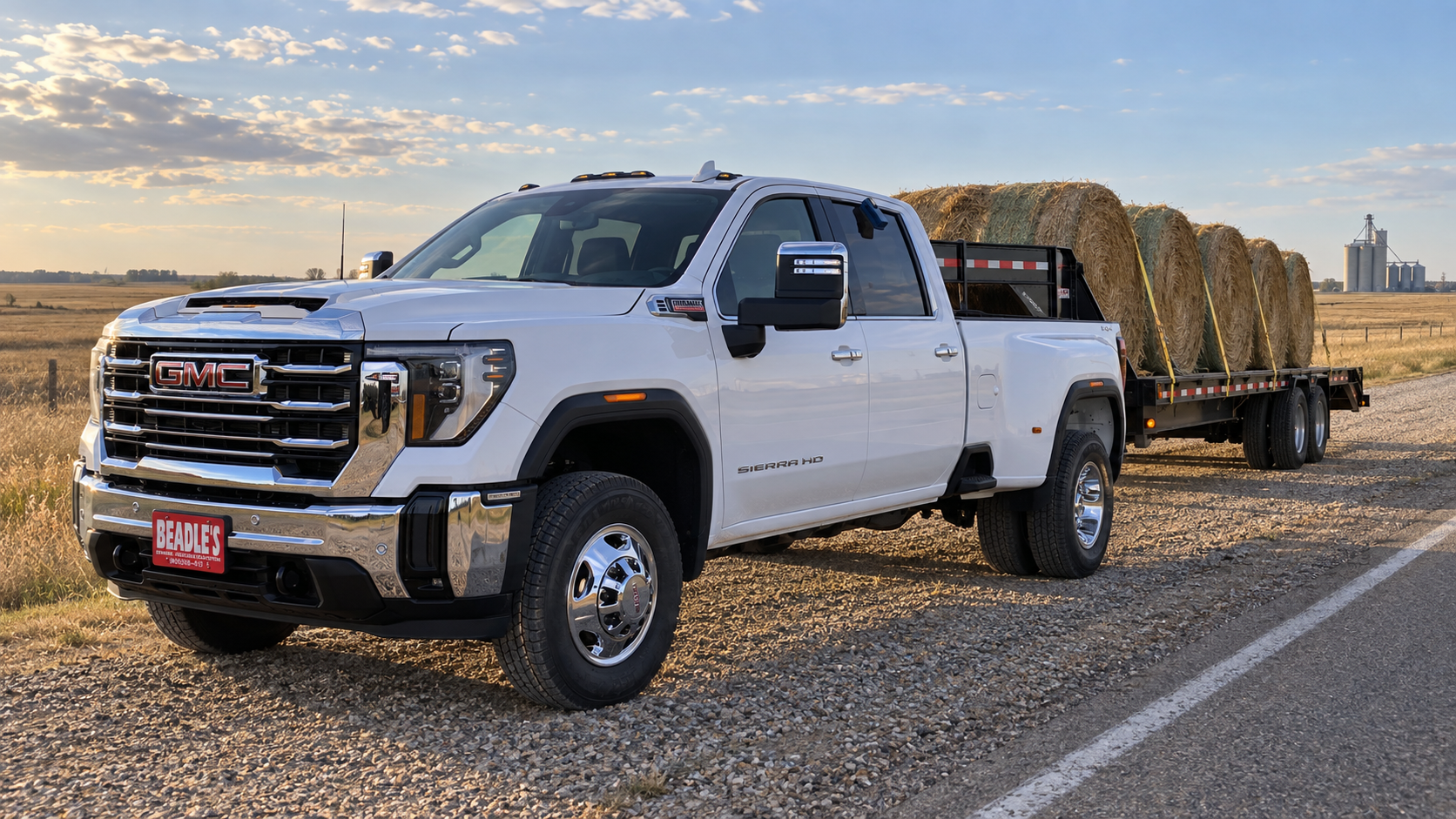

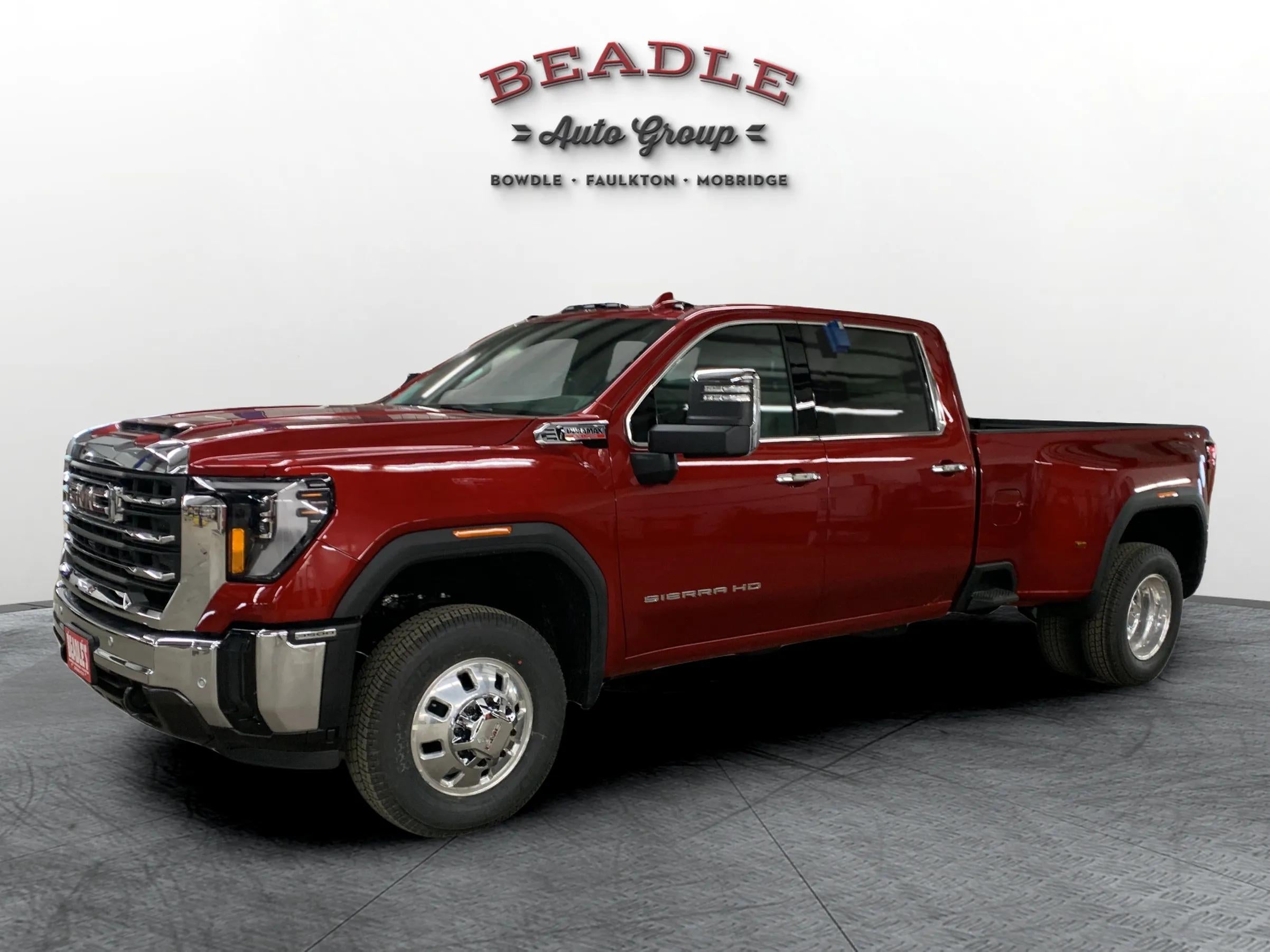

SLT Crew Cab long bed dually: the most-ordered gooseneck truck around here.
Denali Crew Cab standard bed, single rear wheel: the comfortable end of the line.
Denali Ultimate: Alpine Umber leather, 16-way massaging seats, Bose 12-speaker audio.
Worth it if / skip it if. The SLT is worth the step over the SLE for anyone who hooks up weekly: leather, ProGrade Trailering, Digital Variable Steering Assist, and the Autotrac transfer case arrive together. Skip the AT4 if a gooseneck is the job, because it cannot be ordered as a dually. Skip the Denali Ultimate if you want the gas V8, because it is not offered. And if the truck will wear a bale bed or a service body, the Pro and SLE are the two trims that can take the power take-off.

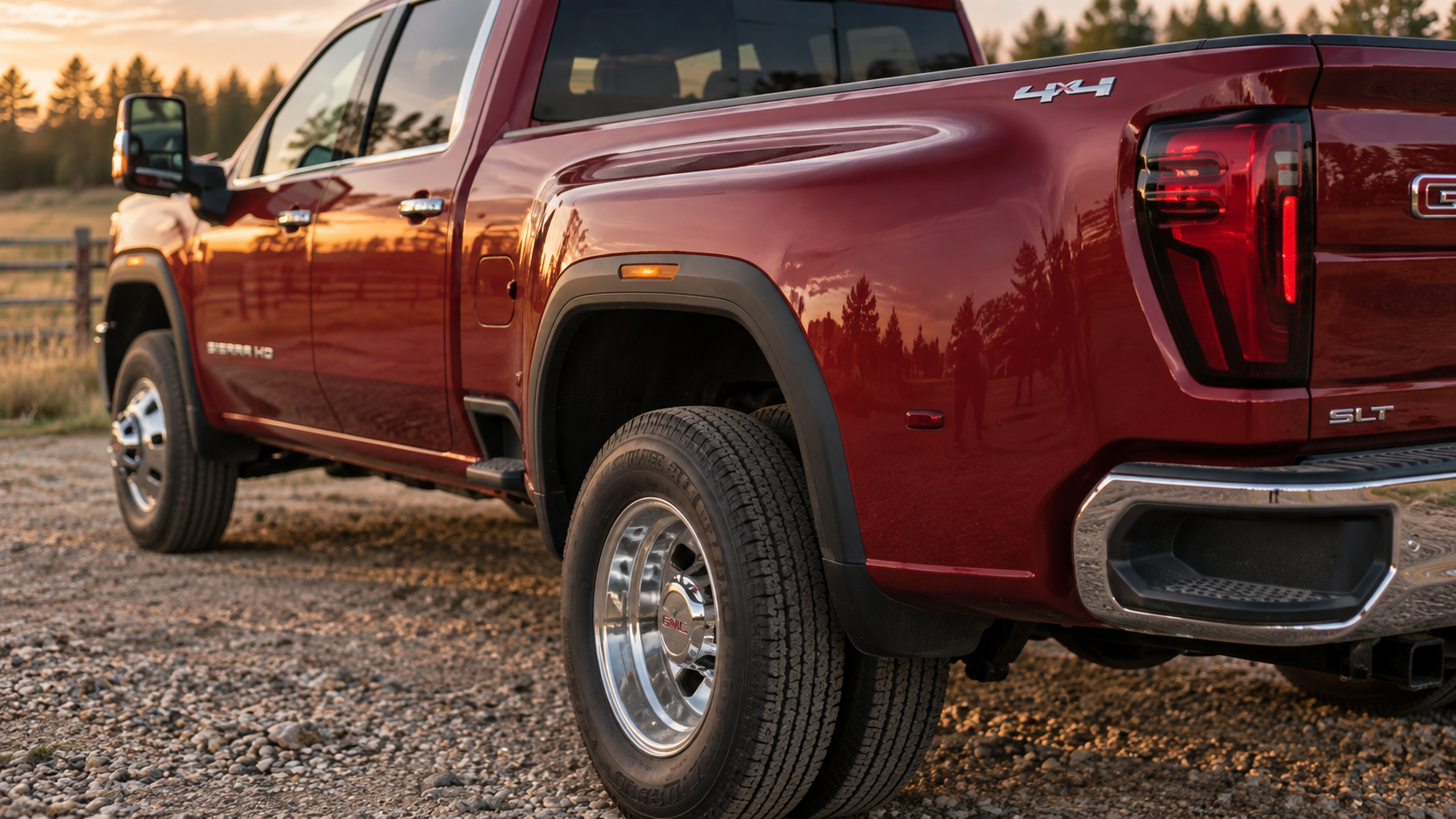

Dually or Single Rear Wheel? The Decision That Defines This Truck
Everything else on a Sierra 3500 HD is a preference. This is the one choice you cannot fix later: a second pair of rear wheels changes the rear axle rating, the springs, the GVWR, the width, and the gooseneck rating all at once. Below is the same truck both ways, a Crew Cab long bed 4WD with the Duramax, which is what most people around Walworth and Corson counties are pricing.
| Crew Cab long bed, 4WD, Duramax | Single rear wheel | Dual rear wheel |
|---|---|---|
| Gooseneck rating, properly equipped | 21,460 lb | 31,000 lb |
| Conventional rating, properly equipped | 20,000 lb | 20,000 lb |
| Payload, Duramax | 4,195 lb | 5,647 lb |
| Payload, same truck with the gas V8 | 4,412 lb | 6,378 lb |
| GVWR | 12,250 lb | 14,000 lb |
| Rear axle rating (GAWR) | 7,250 lb | 10,400 lb |
| GCWR, Duramax | 30,000 lb | 40,000 lb with a gooseneck hitch |
| Body width, no mirrors | 81.85 in | 96.62 in |
| Overall height | 80.67 in | 80.04 in |
| Ground clearance, rear | 11.14 in | 10.39 in |
| Tires to replace | 4 plus a spare, LT275/70R18E or LT275/65R20 | 6 plus a spare, LT235/80R17E or LT235/80R18 |
| Turning circle, curb to curb | 57.0 ft | 57.0 ft |
Read that table twice. The dually does not tow more on the receiver hitch; both are 20,000 pounds conventional with the Duramax, properly equipped. What it buys is about 9,500 pounds of extra gooseneck rating and 1,450 pounds of extra payload on the diesel, because the load goes down through a 10,400-pound rear axle instead of a 7,250-pound one. What it costs is 14.77 inches of width, two more tires, and a firmer ride empty.
The three questions that settle it
1. What does the trailer weigh loaded, not empty? Weigh it at the elevator with the cattle, the bales, or the skid steer on it. A 40-foot tandem-dual stock trailer you carry in your head at 18,000 pounds can cross the scale at 24,000. Compare that to the rating of the exact configuration you are pricing.
2. Does the pin weight fit inside the payload? GM puts gooseneck and fifth-wheel kingpin load at 15 to 25 percent of the trailer weight. Twenty percent of 24,000 pounds is 4,800 on the truck, before the driver, a passenger, and a fuel caddy. Against 4,195 pounds of single-rear-wheel payload that is already over; against 5,647 pounds of dually payload it works. Payload runs out before the tow rating does, every time.
3. How often, and where does the truck sleep? At capacity weekly, the dually is the honest answer. If the heavy pull is four times a year, the single-rear-wheel one-ton gives you almost all of the capability in something that fits a standard shop door and a car wash bay.
Same cab, bed, and engine: 14.77 inches of difference across the rear fenders.
The full single-rear-wheel versus dually guide, including what a dually costs you day to day
Towing: Conventional and Gooseneck Ratings, Every Configuration
A Sierra 3500 HD carries two maximums: one for a bumper-pull trailer on the receiver hitch, and a higher one for a gooseneck coupled in the bed over the rear axle, where the truck carries the load instead of levering it off the bumper. Both depend on cab, bed, drive, rear wheels, and engine. Every figure below assumes a properly equipped truck with no extra options, passengers, or cargo; the label in the driver door jamb is the final word for that VIN.
Conventional (receiver hitch) ratings
| Configuration | Rear wheels | 6.6L gas | Duramax |
|---|---|---|---|
| Crew Cab standard bed 2WD | Single | 16,000 lb | 20,000 lb |
| Crew Cab standard bed 4WD | Single | 16,000 lb | 20,000 lb |
| AT4 Crew Cab standard bed | Single | 16,000 lb | 20,000 lb |
| Denali Crew Cab standard bed | Single | 16,000 lb | 20,000 lb |
| Denali Ultimate Crew Cab standard bed | Single | Not offered | 20,000 lb |
| Crew Cab long bed 2WD | Single | 16,000 lb | 20,000 lb |
| Crew Cab long bed 2WD | Dual | 18,200 lb | 20,000 lb |
| Crew Cab long bed 4WD | Single | 16,000 lb | 20,000 lb |
| AT4 Crew Cab long bed | Single | 16,000 lb | 20,000 lb |
| Denali Crew Cab long bed | Single | 16,000 lb | 20,000 lb |
| Denali Ultimate Crew Cab long bed | Single | Not offered | 20,000 lb |
| Crew Cab long bed 4WD | Dual | 17,800 lb | 20,000 lb |
| Denali Crew Cab long bed | Dual | 17,500 lb | 20,000 lb |
| Denali Ultimate Crew Cab long bed | Dual | Not offered | 20,000 lb |
| Double Cab long bed 2WD | Single | 16,000 lb | 20,000 lb |
| Double Cab long bed 2WD | Dual | 18,300 lb | 20,000 lb |
| Double Cab long bed 4WD | Single | 16,000 lb | 20,000 lb |
| Double Cab long bed 4WD | Dual | 18,000 lb | 20,000 lb |
| Regular Cab 2WD long bed | Single | 14,500 lb | 14,500 lb |
| Regular Cab 2WD long bed dually | Dual | 18,700 lb (gas maximum) | 20,000 lb |
| Regular Cab 2WD long bed dually with Max Trailering | Dual | Not offered | 20,000 lb |
| Regular Cab 4WD long bed | Single | 14,500 lb | 14,500 lb |
| Regular Cab 4WD long bed dually | Dual | 18,400 lb | 20,000 lb |
Reading that table: the receiver-hitch ceiling is 20,000 pounds, and the Duramax reaches it everywhere except the single-rear-wheel Regular Cab, where both engines stop at 14,500. The gas V8 sits at 16,000 pounds on every single-rear-wheel crew cab and Double Cab and climbs only with the second pair of rear wheels.
Gooseneck ratings
| Configuration | Rear wheels | 6.6L gas | Duramax |
|---|---|---|---|
| Crew Cab standard bed 2WD | Single | 18,650 lb | 21,900 lb |
| Crew Cab standard bed 4WD | Single | 18,300 lb | 21,600 lb |
| AT4 Crew Cab standard bed | Single | 17,900 lb | 21,300 lb |
| Denali Crew Cab standard bed | Single | 17,900 lb | 21,200 lb |
| Denali Ultimate Crew Cab standard bed | Single | Not offered | 21,100 lb |
| Crew Cab long bed 2WD | Single | 18,510 lb | 22,070 lb |
| Crew Cab long bed 2WD | Dual | 18,230 lb | 31,440 lb (crew cab maximum) |
| Crew Cab long bed 4WD | Single | 18,230 lb | 21,460 lb |
| AT4 Crew Cab long bed | Single | 17,800 lb | 21,200 lb |
| Denali Crew Cab long bed | Single | 17,800 lb | 21,100 lb |
| Denali Ultimate Crew Cab long bed | Single | Not offered | 21,000 lb |
| Crew Cab long bed 4WD | Dual | 17,800 lb | 31,000 lb |
| Denali Crew Cab long bed | Dual | 17,500 lb | 30,800 lb |
| Denali Ultimate Crew Cab long bed | Dual | Not offered | 30,700 lb |
| Double Cab long bed 2WD | Single | 18,620 lb | 21,900 lb |
| Double Cab long bed 2WD | Dual | 18,300 lb | 31,580 lb |
| Double Cab long bed 4WD | Single | 18,310 lb | 21,590 lb |
| Double Cab long bed 4WD | Dual | 17,990 lb | 31,270 lb |
| Regular Cab 2WD long bed | Single | 19,080 lb (gas maximum) | 22,420 lb |
| Regular Cab 2WD long bed dually | Dual | 18,760 lb | 35,500 lb |
| Regular Cab 2WD long bed dually with the Max Trailering Package | Dual | Not offered | 36,000 lb (the 2026 maximum) |
| Regular Cab 4WD long bed | Single | 18,700 lb | 22,040 lb |
| Regular Cab 4WD long bed dually | Dual | 18,380 lb | 31,500 lb |
One sentence to keep the headline honest: the 2026 Sierra 3500 HD gooseneck maximum of 36,000 pounds belongs to a Pro, 2WD Regular Cab long bed dually with the Duramax and the Max Trailering Package, and the same truck without that package is rated 35,500 pounds, both properly equipped.
Which truck owns the big number, and why it is probably not yours
The Max Trailering Package on a 3500 HD is a Pro, 2WD, Regular Cab, dually-only option with the Duramax, so no crew cab can be ordered with it or is rated by it. The crew cab duallys people here buy are rated on their own springs: 31,440 pounds gooseneck on a 2WD long bed dually, 31,000 on the 4WD, 30,800 on a Denali dually and 30,700 on a Denali Ultimate dually, properly equipped.
One more distinction before you shop trailers. The figures above are gooseneck ratings, taken with a ball in the bed. GM rates a dually combination at 32,000 pounds with a fifth-wheel hitch instead, so if your trailer rides on a kingpin plate, use 32,000 pounds as the ceiling. Every crew cab dually figure on this page sits under that line either way.
Dually gooseneck math for stock trailers and 40-foot flatbeds · GCWR, hotshot decks, and the harvest run · A 40-foot fifth-wheel behind a Denali
Max Trailering and the Capability Packages
The Max Trailering Package works differently on a one-ton. On a Sierra 2500 HD it swaps in 3500 HD hardware; here there is nothing heavier to borrow, so it is a narrow work-truck item: heavy-duty front springs, 18-inch polished forged wheels, LT235/80R18 tires, and the gooseneck prep. It can only be ordered on a Pro, 2WD, Regular Cab long bed dually with the Duramax.
What it lifts: on that one truck, the gooseneck rating goes from 35,500 to 36,000 pounds and the combination rating from 43,500 to 43,900 pounds, properly equipped, which is why the Regular Cab dually owns the headline numbers. The conventional rating does not move, and for a crew cab the package is not on the menu.
| Package | What it includes | Rules |
|---|---|---|
| Max Trailering (NHT) | Heavy-duty front springs, 18-inch polished forged wheels, LT235/80R18 all-terrains, gooseneck prep with stamped bed holes | Pro only; 2WD Regular Cab long bed dually with the Duramax; no bedliner, no bed-hole caps; not with the bed delete or Pro Safety Plus |
| Gooseneck and Fifth-Wheel Prep (Z6A) | Hitch platform with a tray for the ball, stamped bed holes with caps, bed 7-pin connector, spray-on bedliner | All six trims; the Regular Cab needs a Convenience Package; not with the bed delete |
| Gooseneck Hitch Kit (SNO) | Dealer-installed gooseneck ball and chain tie-down kit | All six trims; requires the gooseneck prep |
| Snow Plow Prep and Camper (VYU) | 220-amp alternator, higher front axle rating, skid plates, dash pass-through grommet, roof emergency-light provisions | All six trims, duallys included; requires 4WD; not with the heavy-duty front springs or Max Trailering |
| Heavy-Duty Front Spring / Camper (F60) | Heavier front springs for a slide-in camper or a heavy front upfit | All six trims; not with the snow plow prep package |
| X31 Off-Road (X31) and X31 Off-Road and Protection (RFX) | Hill Descent Control, skid plates, off-road suspension with twin-tube shocks; the protection version adds a bedliner and all-weather liners | Single rear wheel only; never on a dually; standard content on the AT4 |
| Power Take-Off (PTO) | 10-speed automatic with an integrated power take-off for hydraulic upfits | Pro and SLE; requires the Duramax and 4WD |
| Upfitter equipment | Dual alternators (220-amp plus 170-amp), Universal Vehicle Module with 10 switchable circuits, five upfitter switches, high-idle switch | All six trims; gas needs the auxiliary battery with dual alternators; high idle is not with the power take-off |
| Pickup bed delete (ZW9) | Ships as a cab and chassis for a flatbed, bale bed, or service body; deletes the rear bumper and spare | Pro and SLE long bed only; not with 20-inch wheels |
One more difference from the three-quarter-ton: there is no lowered-GVWR option here. A dually is a 14,000-pound-GVWR truck and cannot be ordered down for licensing the way some 2500 HD buyers do.
How to spot the prep: the hitch tray and capped holes in the bed floor, the 7-pin connector in the bed wall, and the label in the driver door jamb.
Payload, GVWR, GCWR, and the Axle Underneath
Payload is what the truck itself can carry: people, anything in the bed, and the tongue or kingpin weight of the trailer. On a gooseneck it is almost always the number that runs out first. Every figure below is for a base-equipment truck; options, a headache rack, or a toolbox come straight off the top.
Crew Cab payload
| Configuration | Rear wheels | 6.6L gas | Duramax |
|---|---|---|---|
| Crew Cab standard bed 2WD | Single | 4,334 lb | 4,171 lb |
| Crew Cab standard bed 4WD | Single | 4,362 lb | 4,194 lb |
| Crew Cab long bed 2WD | Single | 4,341 lb | 4,154 lb |
| Crew Cab long bed 4WD | Single | 4,412 lb | 4,195 lb |
| AT4 Crew Cab standard bed | Single | 4,089 lb | 3,922 lb |
| AT4 Crew Cab long bed | Single | 4,127 lb | 3,947 lb |
| Denali Ultimate Crew Cab standard bed | Single | Not offered | 3,782 lb |
| Denali Ultimate Crew Cab long bed | Single | Not offered | 3,807 lb |
| Crew Cab long bed 2WD | Dual | 6,658 lb (crew cab maximum) | 5,920 lb |
| Crew Cab long bed 4WD | Dual | 6,378 lb | 5,647 lb |
| Denali Ultimate Crew Cab long bed | Dual | Not offered | 5,290 lb |
Double Cab and Regular Cab payload
| Configuration | Rear wheels | 6.6L gas | Duramax |
|---|---|---|---|
| Double Cab long bed 2WD | Single | 4,464 lb | 4,306 lb |
| Double Cab long bed 4WD | Single | 4,456 lb | 4,299 lb |
| Double Cab long bed 2WD | Dual | 6,820 lb | 6,114 lb |
| Double Cab long bed 4WD | Dual | 6,513 lb | 5,807 lb |
| Regular Cab 2WD long bed | Single | 4,583 lb | 4,486 lb |
| Regular Cab 4WD long bed | Single | 4,590 lb | 4,444 lb |
| Regular Cab 2WD long bed dually | Dual | 7,290 lb (the 2026 maximum) | 6,584 lb |
| Regular Cab 4WD long bed dually | Dual | 6,947 lb | 6,301 lb |
Three things fall out of those tables. A dually adds 2,000 to 2,700 pounds of payload over the same cab. The Duramax costs 200 to 750 pounds against the gas V8, because the engine weighs more. And GM does not publish a payload figure for the Denali, so take that one off the loading label in the driver door jamb rather than from any chart, ours included.
GVWR, GCWR, and axle ratings
| Rating | Single rear wheel | Dual rear wheel |
|---|---|---|
| GVWR range | 10,950 lb (Regular Cab 2WD gas) to 12,250 lb (Crew Cab long bed 4WD Duramax) | 14,000 lb on every dually, no exceptions and no lowered-GVWR option |
| Crew Cab GVWR | 11,200 to 11,700 lb gas; 11,750 to 12,250 lb Duramax | 14,000 lb |
| Rear axle rating (GAWR) | 7,250 lb | 10,400 lb |
| Front axle rating (GAWR) | 4,800 to 5,600 lb by cab and engine | 5,600 to 6,000 lb |
| GCWR, 6.6L gas | 26,000 lb | 26,000 lb |
| GCWR, Duramax | 30,000 lb | 40,000 lb with a gooseneck hitch |
| GCWR, Duramax, Regular Cab 2WD dually | Not applicable | 43,500 lb, or 43,900 lb with the Max Trailering Package |
GCWR is the loaded truck plus the loaded trailer, and it governs long days rather than a single pull. On a dually the diesel combination rating is 40,000 pounds with a gooseneck hitch. With a fifth-wheel hitch instead, GM sets that same dually combination at 32,000 pounds, so a big kingpin trailer is the case where the combination number decides what you can run.
Pin-weight illustration (our example, not a GM figure): take the 4WD crew cab long bed dually with the Duramax, rated 31,000 pounds gooseneck and 5,647 pounds of payload, properly equipped. A 40-foot tandem-dual stock trailer that scales 26,000 pounds loaded with yearlings sits well inside the tow rating. At a 20 percent kingpin load it sets 5,200 pounds on the truck. Add a 200-pound driver, a 180-pound passenger, and 100 pounds of sorting sticks and feed pails, and you are at 5,680 pounds against a 5,647-pound payload. Over, on a combination that looked easy on the tow rating alone. Weigh the loaded trailer and check both numbers against the label in that truck's driver door jamb.
A word on DOT, because we get asked weekly: a 14,000-pound-GVWR dually pulling a heavy gooseneck can put the combination over the thresholds that bring commercial rules into play, and using the truck in a business changes the question again. General guidance, not legal advice: check with your carrier and the state before you assume a farm plate covers the run.

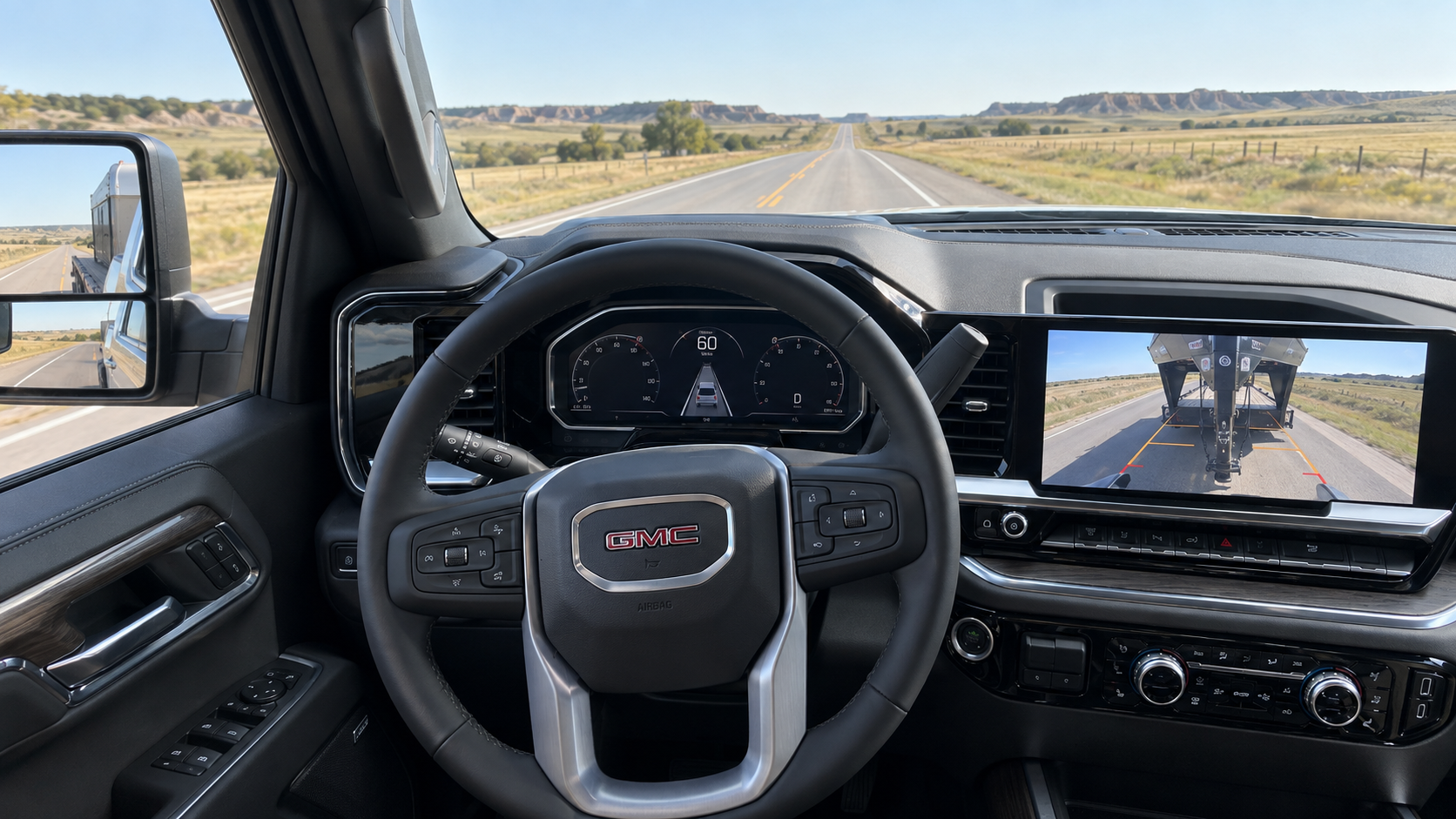

ProGrade Trailering, Cameras, and the Trailering App
Every 2026 Sierra 3500 HD ships with the trailering package standard: a receiver hitch, 7-pin and 4-pin connectors, an integrated trailer brake controller, Hitch Guidance with a dynamic alignment line, trailer sway control, hill start assist, and the trailering information label listing tongue, conventional, gooseneck, and fifth-wheel ratings for that truck. From there the tech stacks:
- SLT, AT4, Denali, Denali Ultimate: ProGrade Trailering is standard, adding Hitch View (a zoomed, tilting look at the ball as you back under the coupler) and the In-Vehicle Trailering App with a pre-departure checklist, light test, maintenance reminders, trailer mileage, and tire pressure support.
- SLE: the Preferred Package adds the trailering app, Hitch View, adaptive cruise control, and the trailer tire pressure sensors.
- Sierra HD Pro Safety Plus (SLE and SLT): Trailer Side Blind Zone Alert, Rear Cross Traffic Alert, and park assist; Crew and Double Cab add the Bed View camera, HD Surround Vision, and Trailer Camera Provisions for a camera on the back of a 40-foot deck.
- Duallys specifically: a Pro built as a dually with the Convenience Package requires the power heated auto-dimming trailering mirrors, because a 96.62-inch-wide truck needs the reach.
Backing a 40-foot deck between an elevator scale and a dryer leg is where those cameras stop being a feature list. Read the hotshot and harvest guide.
Built for a Dakota Winter
Calving checks at twenty below, a snow contract that starts at 4 a.m., and a feed truck that starts every morning from November to March are what a one-ton does here. The equipment list is short and most of it is standard:
- An engine block heater and a 220-amp alternator come with every Duramax, along with a 730-cold-cranking-amp battery and an exhaust brake for holding a loaded gooseneck down a grade.
- Snow Plow Prep and Camper Package is offered on all six trims, duallys included: the 220-amp alternator on gas trucks, a higher front axle rating for a blade, skid plates, a dash grommet for the plow controller, and roof light provisions. It requires 4WD. Whether a specific blade fits a specific dually is an upfitter question, so bring us the plow model before you order.
- Dual alternators (220-amp primary plus a 170-amp auxiliary) are available on every trim, for a truck running a blade, a beacon bar, and a hydraulic bale bed.
- Autotrac two-speed transfer case on SLT and up gives an automatic mode that engages the front axle as the rear slips, which is what a section line that goes from dry gravel to packed snow in one mile asks for. Pro and SLE use a push-button case.
- The G80 automatic locking rear differential is standard on all six trims, as are StabiliTrak with trailer sway control and hill start assist.
The winter equipment is shared across the HD line. Snow plow prep, block heaters, and calving checks in a Mobridge winter covers the ordering detail and applies to the one-ton as well.
Cab, Bed, Tailgate, and Dimensions
Four body configurations, and one fact surprises people: there is no Double Cab standard bed on the 3500 HD. Every Double Cab and Regular Cab is a long bed, and every dually is a long bed by rule.
| Cab and bed | Wheelbase | Overall length | Bed length | Turning circle | Fuel tank |
|---|---|---|---|---|---|
| Regular Cab long bed | 142 in | 236.3 in | 98.3 in (8 ft) | 46.9 ft | 36 gal gas, 28 gal diesel |
| Double Cab long bed | 162 in | 257.2 in | 98.3 in (8 ft) | 53.9 ft | 36 gal |
| Crew Cab standard bed | 159 in | 250.8 in | 82.2 in (6 ft 9 in) | 52.7 ft | 36 gal |
| Crew Cab long bed | 172 in | 266.8 in | 98.2 in (8 ft) | 57.0 ft | 36 gal |
| Dimension | Single rear wheel | Dual rear wheel |
|---|---|---|
| Body width, no mirrors, every cab | 81.85 in | 96.62 in |
| Overall height, Crew Cab long bed | 80.67 in | 80.04 in |
| Ground clearance, rear, Crew Cab long bed | 11.14 in | 10.39 in |
| Ground clearance, rear, Regular Cab | 11.22 in | 10.47 in |
That 14.77-inch difference is the thing to measure before you order a dually. Take a tape to your shop door, the gate you back a trailer through, and the car wash bay in town, and remember the published width is fender to fender without mirrors. The turning circle does not change between single and dual rear wheels on the same cab; a dually is no harder to swing around a yard, it is simply wider.
The bed is 21 inches deep and 71.4 inches wide wall to wall, with 12 fixed tie-downs rated 500 pounds each and 69.5 cubic feet of volume on the standard bed or 83.5 on the long bed. Between the wheelhousings you get 51.85 inches standard and 50.55 long, so a 4-by-8 sheet rides flat over the wells. Tailgates run from a manual gate on the Pro, to the EZ Lift standard on SLE and up, to the six-function MultiPro standard on AT4 and above. For a flatbed or bale bed, the Pro and SLE long beds can be ordered with the bed deleted.
The dually fender line: 96.62 inches across, and the reason a tape measure belongs in this decision.
2026 Colors and Interiors by Trim
Pro and SLE (7 colors)
| Color | Code | Note |
|---|---|---|
| Coastal Dune | G42 | New for 2026 |
| Onyx Black | GBA | Both trims |
| Summit White | GAZ | Both trims, no-charge |
| Cardinal Red | G7C | Pro and SLE only, not offered further up |
| Sterling Metallic | GXD | Both trims |
| Downpour Metallic | GXP | Pro only in this group, Jet Black interior |
| Titanium Rush Metallic | G6M | SLE only in this group |
SLT, AT4, Denali, Denali Ultimate (8 colors)
| Color | Code | Trim rule |
|---|---|---|
| Coastal Dune | G42 | New; AT4 only in this group |
| Glacier White Tricoat | G4J | New; SLT, Denali, Denali Ultimate |
| Onyx Black | GBA | All four |
| Summit White | GAZ | All four, no-charge |
| Sterling Metallic | GXD | All four |
| Volcanic Red Tintcoat | GNT | SLT and AT4 only |
| Downpour Metallic | GXP | Denali and Denali Ultimate only |
| Titanium Rush Metallic | G6M | All four |
Interiors: Pro in Jet Black vinyl or cloth; SLE in Jet Black or Dark Walnut and Slate cloth; SLT in the same two in perforated leather-appointed; AT4 in Jet Black with Kalahari accents; Denali in Forge leather, Jet Black or Atmosphere and Brownstone; Denali Ultimate in Alpine Umber. Bench trucks seat six, the AT4 and Denali Ultimate seat five, the Regular Cab three.
Volcanic Red Tintcoat on an SLT dually, on our lot as this is written.
Summit White is the no-charge color, and from the rear it shows what 96.62 inches looks like.
Safety and Technology
Sierra HD Pro Safety is standard on all six trims: Forward Collision Alert, Following Distance Indicator, Front Pedestrian Braking, Automatic Emergency Braking, Lane Departure Warning, IntelliBeam, and Buckle to Drive. Above it the packages stack by trim:
- Pro Safety Plus on the Pro: front and rear park assist, Rear Cross Traffic Alert, Lane Change Alert with Side Blind Zone Alert, and trailering mirrors. It cannot be combined with the Max Trailering Package.
- Sierra HD Pro Safety Plus on SLE and SLT: Trailer Side Blind Zone Alert, Rear Cross Traffic Alert, and park assist; Crew and Double Cab add the Bed View camera, HD Surround Vision, and Trailer Camera Provisions. On an SLT it also brings the Safety Alert Seat.
- Technology Package on AT4, Denali, and Denali Ultimate: Rear Camera Mirror plus the multicolor 15-inch head-up display. For 2026 it is not offered on the SLT, which is worth knowing if you are cross-shopping an SLT against a Denali.
- Adaptive cruise control is standard on AT4, Denali, and Denali Ultimate, and comes with the Preferred Package on an SLE or an SLT.
Screens and audio: a 7-inch display with wireless Apple CarPlay and Android Auto plus a 3.5-inch driver display on the Pro; the 13.4-inch GMC Premium Infotainment with Google built-in and the 12.3-inch driver display on SLE and up. Audio is six speakers on Pro and SLE, Bose 7-speaker on SLT and Denali, Bose 12-speaker on the Denali Ultimate.
The 13.4-inch screen running a trailering camera view, 12.3-inch driver display alongside.
How the Sierra 3500 HD Stacks Up
This is Ford and Ram country as much as GM country, and a good share of the people who walk our lot are trading a dually in on a dually. We keep competitor figures off this page on purpose: they move every year, and a comparison is only fair when it matches cab to cab and dually to dually. The comparison guide does that, with the Ford and Ram numbers taken from the manufacturers' own published towing information and dated at publish.
The closer comparison is in our own row. The Chevrolet Silverado 3500 HD shares the frame, both V8s, the 10-speeds, the axles, and every trailer rating; what differs is the sheet metal, the trim ladder, the interiors, and the MultiPro tailgate. Sit in both and pick the cab you would rather spend a harvest in.
Sierra 3500 HD vs Ford F-350 vs Ram 3500, dually to dually · Sierra 2500 HD or 3500 HD: when to step up to the one-ton
2026 Sierra 3500 HD Buyer Guides
Six guides, each answering one question a Mobridge one-ton buyer asks at the desk.
The Dually Decision
Single Rear Wheel or Dually? Choosing the 2026 Sierra 3500 HD That Fits Your Trailer and Your Shop Door
What the second pair of wheels changes, the same truck both ways, and what a dually costs you day to day.
Read the Full GuideRanch
How Much Can the 2026 Sierra 3500 HD Tow With a Gooseneck? Dually Math for Tandem-Dual Stock Trailers and 40-Foot Flatbeds
Where the biggest number comes from, and two loaded trailers worked against payload and the combination rating.
Read the Full GuideCommercial
GCWR, Hotshot Decks, and the Harvest Run: The 2026 Sierra 3500 HD Dually as a Working Combination
Why the combination rating governs a working truck, and a spec sheet for a fleet dually.
Read the Full GuideRecreation
Towing a 40-Foot Fifth-Wheel With the 2026 Sierra 3500 HD Denali: Single Rear Wheel Comfort or Dually Margin?
What the Denali on our lot is rated for, when the trailer forces the dually anyway, and the kingpin check on a 42-footer.
Read the Full Guide
Comparisons
Sierra 2500 HD or 3500 HD? When to Step Up to the One-Ton Around Mobridge
Same cab and engines, different truck underneath: springs, axle ratings, and the pin-weight math that decides which one belongs in your yard.
Read the Full GuideComparisons
2026 GMC Sierra 3500 HD vs Ford F-350 vs Ram 3500, Dually to Dually: The Mobridge Comparison
Engines by name, gooseneck and payload matched dually to dually, and what a Ford or Ram trade looks like here.
Read the Full Guide
Need Less Truck?
The GMC Sierra 2500 HD, On the Same Lot
If your loaded gooseneck stays under about 19,000 pounds and the pin weight leaves room for the people and gear you carry, the three-quarter-ton rides better empty and parks anywhere.
See the Sierra 2500 HD2026 Sierra 3500 HD — Common Questions
How much more can the dually tow and carry than the single-rear-wheel 3500 HD?
On a gooseneck, 9,000 to 13,500 pounds more depending on the cab. On a Crew Cab long bed 4WD with the Duramax, properly equipped, it is 21,460 pounds gooseneck as a single-rear-wheel truck and 31,000 as a dually. Payload goes from 4,195 to 5,647 pounds on the diesel and 4,412 to 6,378 on the gas V8, because the rear axle rating goes from 7,250 to 10,400 pounds and the GVWR from 12,250 to 14,000. The conventional rating does not change; both are 20,000 pounds with the Duramax.
What tires does the dually come on, and what does a set of six cost?
A Pro, SLE, or SLT dually leaves the factory on 17-inch painted steel wheels with LT235/80R17E all-terrains. A Denali or Denali Ultimate dually, and any SLE or SLT that orders the 18-inch polished forged wheel, runs LT235/80R18 all-terrains. There is no 20-inch or 22-inch wheel on any 3500 HD dually; all of those require single rear wheels. On price, call our parts counter with your size and we will quote a set of six plus the spare.
How much can a 2026 Sierra 3500 HD tow with a gooseneck?
The configuration decides it. Properly equipped with the Duramax, a crew cab long bed dually is rated 31,440 pounds in 2WD and 31,000 in 4WD, a Denali dually 30,800 and a Denali Ultimate dually 30,700, and a Double Cab dually 31,580 in 2WD or 31,270 in 4WD. Single-rear-wheel Duramax crew cabs run 21,000 to 22,070 pounds, and the gas V8 range is 17,500 to 19,080. Those are gooseneck ratings taken with a ball in the bed; with a fifth-wheel hitch, GM caps a dually combination at 32,000 pounds.
What is the Sierra 3500 HD conventional, bumper-pull rating?
With the Duramax, 20,000 pounds properly equipped on every configuration except the single-rear-wheel Regular Cab, which stops at 14,500 pounds with either engine. With the 6.6L gas V8 it is 16,000 pounds on any single-rear-wheel crew cab or Double Cab, and 17,500 to 18,700 pounds on a dually. The Max Trailering Package does not raise the conventional number; it only moves the gooseneck and combination ratings on the one truck that can order it.
What is the GVWR of a Sierra 3500 HD, and does it push me into DOT territory?
Every 2026 Sierra 3500 HD dually is rated at 14,000 pounds GVWR, and there is no lowered-GVWR option on the one-ton. Single-rear-wheel trucks run 10,950 to 12,250 pounds by cab, engine, and drive. On DOT, this is general guidance rather than legal advice: that GVWR pulling a heavy gooseneck can put the combination over the thresholds where commercial rules apply. Check with your carrier and the state before you assume a farm plate covers the run.
Where does the biggest Sierra 3500 HD gooseneck number come from, and which truck is it?
The 2026 maximum of 36,000 pounds belongs to a Pro, 2WD Regular Cab long bed dually with the Duramax and the Max Trailering Package, properly equipped, and the same truck without that package is rated 35,500 pounds. That package is a Pro, 2WD, Regular Cab, dually-only option, so no crew cab can be ordered with it and the crew cab trucks on our lot are rated on their own springs at 31,440 pounds in 2WD and 31,000 in 4WD.
Is the 6.6L gas V8 offered on the Sierra 3500 HD, and who should buy it?
Yes, on five of the six trims. The 401-horsepower, 464-lb-ft gas V8 is standard on Pro, SLE, SLT, AT4, and Denali, and is not offered on the Denali Ultimate. Buy it if the truck carries more than it pulls: it holds the best payload figures in the line, up to 7,290 pounds on a 2WD Regular Cab long bed dually. Buy the Duramax if the gooseneck is heavy and the miles are long.
Does the Sierra 3500 HD offer a PTO transmission, and on which trims?
Yes. The power take-off is a 10-speed automatic with an integrated PTO drive, offered on the Pro and SLE only, and it requires the Duramax and 4WD. It cannot be combined with the SLE Preferred Package or the high-idle switch. If you are building a truck for a bale bed, a hoist, or a hydraulic dump body, plan the trim around the PTO first and add convenience items second.
Which trims come as a dually, and can you get a Denali dually?
Five of the six: Pro, SLE, SLT, Denali, and Denali Ultimate can all be built with dual rear wheels. The AT4 cannot, because its off-road hardware is single-rear-wheel only. The Denali dually and the Denali Ultimate dually both exist, riding on 18-inch polished forged wheels with Denali center caps and the heavy-duty suspension package. The rule governing all of them: a dually is always a long-bed truck at 14,000 pounds GVWR.
What is the difference between the Sierra 3500 HD and the Silverado 3500 HD?
Underneath, almost nothing. They share the frame, both 6.6L V8s, the 10-speed automatics, the axle ratios, the dually hardware, and the trailer ratings. The differences are the sheet metal and grille, the trim ladder and its names, the interior materials, and the MultiPro tailgate, which is a GMC item. We sell both at 2200 US Hwy 12 in Mobridge, so sit in each back to back and let the cab and the deal decide rather than the spec sheet.
Ready to Find Your 2026 Sierra 3500 HD?
Bring us the loaded weight of your trailer and we will match it to the label on a specific truck, single rear wheel or dually, before you sign anything. Beadle Chevrolet GMC, 2200 US Hwy 12 in Mobridge, open Monday through Friday 8:00 a.m. to 5:30 p.m. and Saturday 8:00 a.m. to noon. Call or text 605-845-7277, or start online.
Ordering rather than buying off the row? See what is new on the 2027 Sierra 3500 HD before you place it.
Written by Lexy Tabbert, Beadle Auto Group. Specifications and ratings are GM published figures for the 2026 GMC Sierra 3500 HD and assume a properly equipped truck; they depend on cab, bed, drive, rear wheels, engine, and packages. Confirm the rating on the trailering information label in the driver door jamb of the specific vehicle. Fuel economy is not published for vehicles in this weight class.
